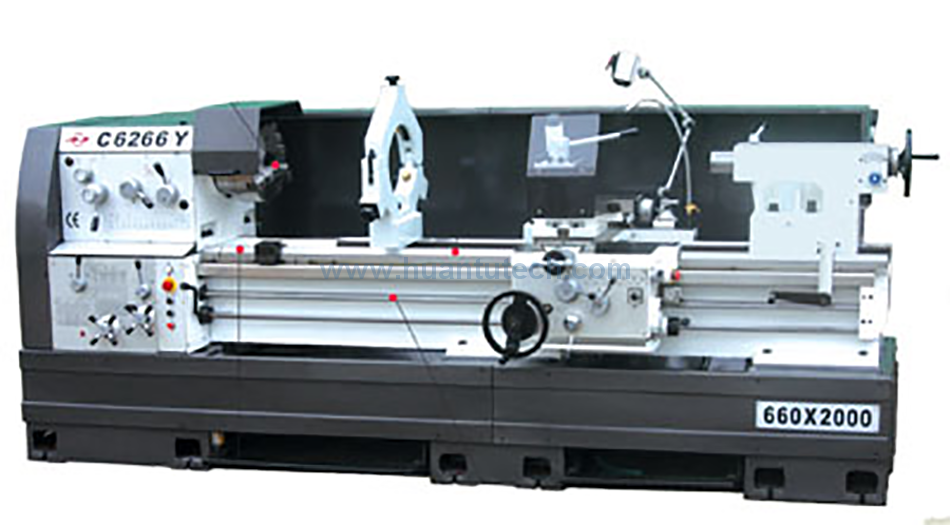

SPECIFICATIONS
|
MODELS
|
|
C6 1/2 60Y
|
C6 1/2 66Y
|
C6 1/2 80Y
|
|
CAPACITY
|
Swing over bed
|
600 (233/5")
|
660mm(26")
|
800mm(311/2")
|
|
Swing over cross slide
|
375mm(143/4)
|
435mm(171/8")
|
545mm(212/5")
|
|
Swing in gap
|
800(311/2")
|
860(334/5")
|
1000(39")
|
|
Valid length of gap
|
2800mm(11?±)
|
|
Max. length of work piece
|
1000mm (391/3") 1500mm (59") 2000mm(783/4") 3000mm(118")
|
|
Width of bedways
|
400mm(157/10")
|
|
HADSTOCK
|
Spindle nose
|
ISO－－c11 or ISO－－D11
|
|
Spindle bore
|
103mm(4")
|
|
Range of spindle speeds/step
|
18 (ccw/18)9-1275rpm 6 (cw/6￡© 16-816rpm
|
|
FEEDS AND THREADS
|
Max. travel of compound rest
|
110mm(41/3")
|
|
Max. travel of cross slide
|
325mm(124/5")
|
|
Longitudinal feeds range
|
12mm or 2 TPI
|
|
Section of tool
|
32*32mm
|
|
Longitudinal feeds range
|
72kinds 0.073-4.066 mm/rev
|
|
Cross feeds range
|
72kinds 0.036-2.033 mm/rev
|
|
Metric threads range
|
72kinds 0.5-112 mm
|
|
Inch threads range
|
72kinds 56-1/4 inch
|
|
Module threads range
|
36kinds 0.5-7
|
|
Diametral threads range
|
36kinds 56-4D.P
|
|
TAIL STOCK
|
Dia. of tailstock sleeve
|
90mm
|
|
Morse taper of tailstock sleeve
|
Morse No.6
|
|
Travel of tailstock sleeve
|
150mm
|
|
Cross adjustment range
|
10mm
|
|
MOTOR
|
Power of main motor
|
7.5kw or 11kw
|
|
Power of quick-travel motor
|
250w
|
|
Power of coolant pump
|
125w
|
|
Power of coolant pump
|
220v，380v，440v(50HZ￡?60HZ)
|
|
Packing Size(L*W*H)
|
1000mm
|
3820*1300*2100mm
|
|
1500mm
|
3320*1300*2100mm
|
|
2000mm
|
3820*1300*2100mm
|
|
3000mm
|
4820*1300*2100mm
|
