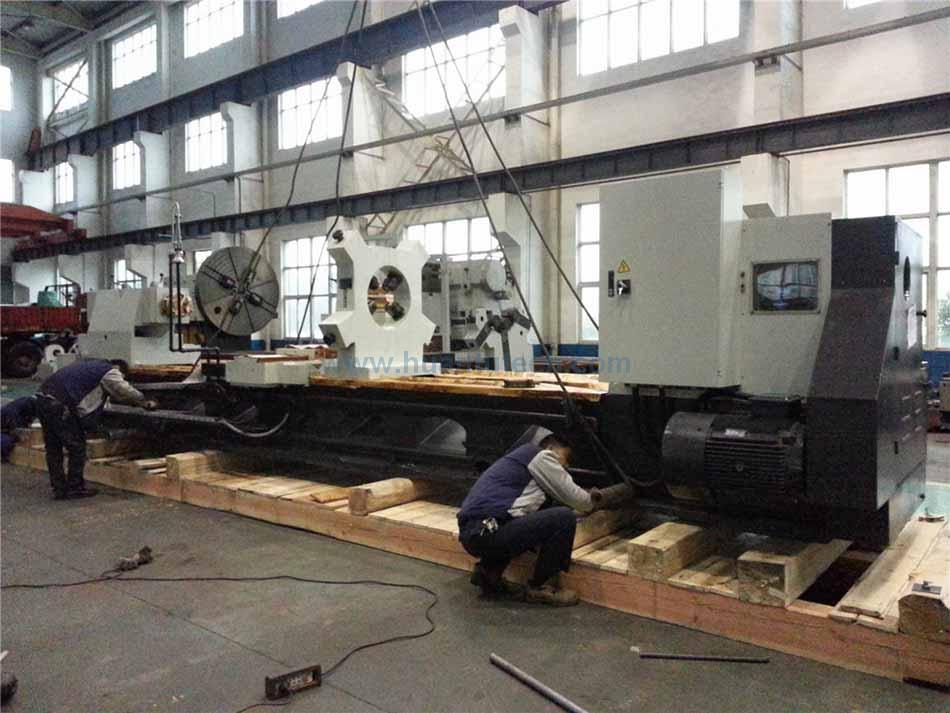

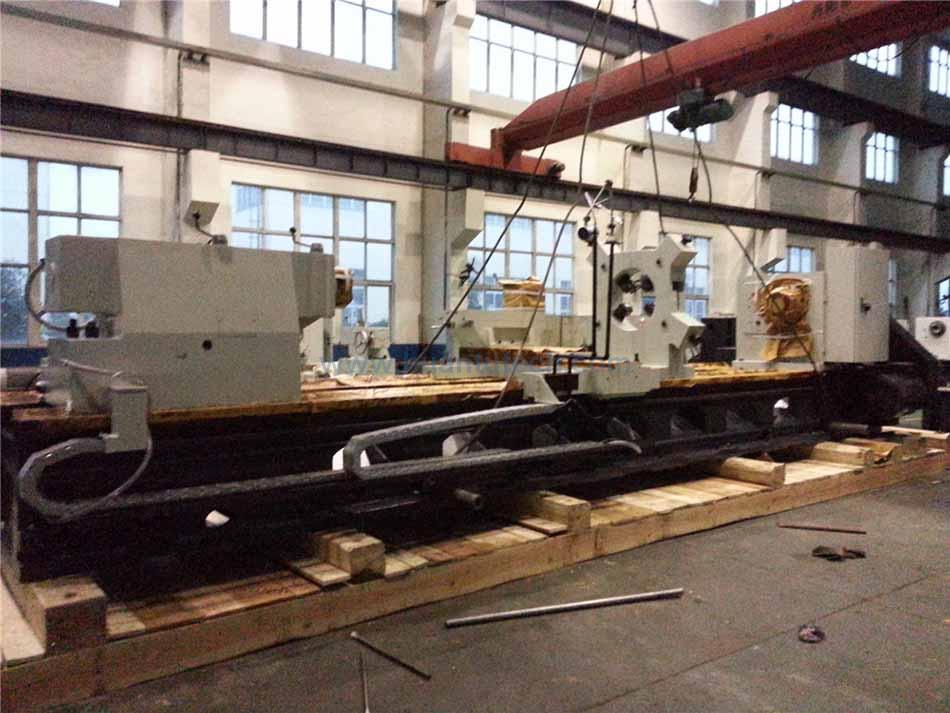

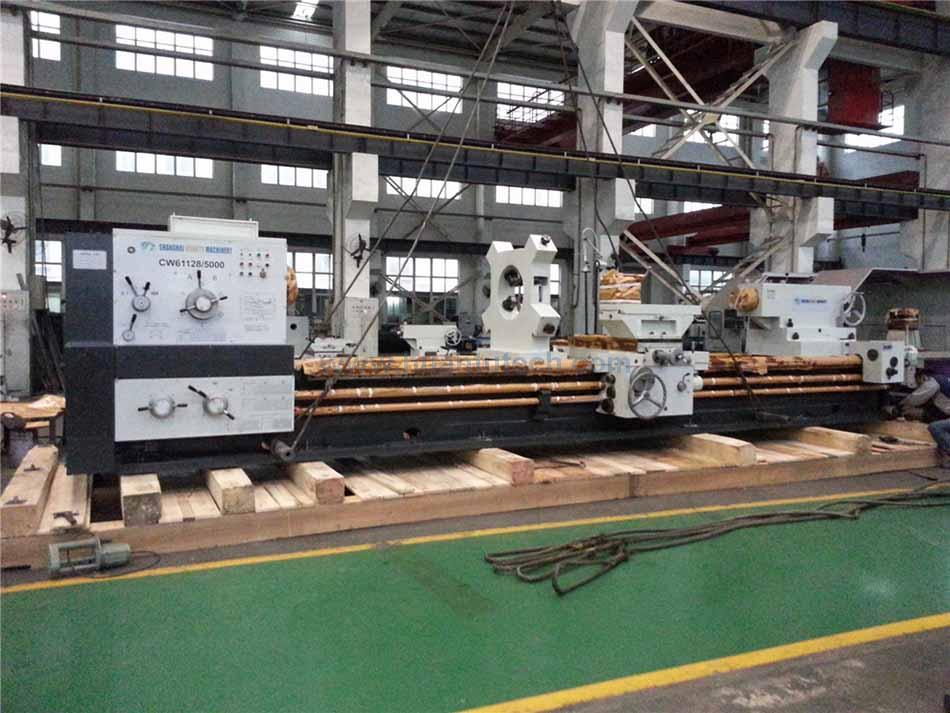

MODEL

CWQ61100

CWQ61125

CWQ61140

CWQ61160

Max.weight of workpiece

8 Tons

Max.swing over bed

1000mm

1250mm

1400mm

1600mm

Max.swing over cross slide

620mm

870mm

1000mm

1100mm

Center distance

1.5m 2m 3m 4m 5m 6m 8m 10m 12m

Width of bed

780mm

HEAD STOCK

Spindle hole

∮130mm

Spindle taper

 140#

Spindle speeds

3.15-315r/min或2.5-250r/mm.     21kinds/12kinds

GEAR BOX-THREADS&FEEDS

Metric threads range(kinds)

44 Kinds 1-120mm

Inch threads range(kinds)

31 Kinds 1/4-24牙/时

Moudle threads range(kinds)

45 Kinds 0.5-60mm

Diametral threads range(kinds)

38 Kinds 1/2-56DP

Longitudinal feeds range(kinds)

56 Kinds 0.1-12mm

Cross feed range(kinds)

56 Kinds 0.05-6mm

Rapid feed:Long/Cross

3400mm/min，1700mm/min

TOOL-POST

Distance between Center & Tool

48mm

Tool section

45*45mm

CARRIAGE

Cross slide travel

650mm

Compound rest travel

280mm

TAILSTOCK

Sleeve diameter

∮160mm

Sleeve taper

Metric 80#或 6#

Sleeve travel

300mm

MOTOR

Main motor

22kw

Coolant motor

0.15kw

Rapid feed motor

1.5kw

Center distance.Net weight.Dimention CW61125

1500
2000
3000
4000
5000
6000
8000
10000
12000

11400kg
12200kg
13000kg
13800kg
14600kg
15400kg
17000kg
18600kg
20200kg

4600*1900*2400
5100*1900*2400
6100*1900*2400
7100*1900*2400
8100*1900*2400
9100*1900*2400
11100*1900*2400
13100*1900*2400
15100*1900*2400
